Doris Lance 使用手册
本文为您介绍如何使用百度胜算的 Doris 查询 Lance 的数据,覆盖创建 Lance 数据目录(Catalog)、标量查询、向量检索以及跨 Catalog 联邦查询的完整操作流程。
准备工作
创建分析与 AI 搜索实例
需前往计算资源创建分析与 AI 搜索实例,实例创建完成后,需前往当前项目所在资源组进行绑定。
实例创建完成后,元数据中会自动创建一个对应该实例的 Doris 数据目录,后续的 Lance Catalog 就在这个 Doris 数据目录中创建。
准备一个已有数据的 Lance 表
Doris 当前只支持查询 Lance 数据,不支持写入和更新。您可以使用 Spark 或 Ray 创建一个 Lance 表并导入一些测试数据。本手册示例表为 spark_all_types。
在元数据页面中记录下 Lance 数据目录的以下两个值,创建 Lance Catalog 时需要使用:
- catalog name:Lance 数据目录的名称。
- catalog id:Lance 数据目录的唯一标识。
获取 Doris 的连接信息
获取 Doris 的 IP、端口、用户名和密码。如未获取到连接信息,请联系百度胜算技术支持。
通过 MySQL 客户端访问 Doris
Doris 是一个兼容 MySQL 协议的 OLAP 数据库,因此可以直接用 MySQL 客户端连接。在本地终端执行以下命令,将 {doris_ip}、{doris_user}、{user_password} 替换为实际的连接信息,端口默认为 9030。
1mysql -h{doris_ip} -P9030 -u{doris_user} -p{user_password}
连接成功后进入 MySQL 命令行交互界面,本章后续 SQL 均在此执行。
在 Doris 中创建 Lance Catalog
只需将下面语法中的 metastore.catalog.id 和 lance.databuilder.catalog_name 替换为您的 catalog id 和 catalog name 即可。
1CREATE CATALOG `lance` PROPERTIES (
2 "type" = "lance",
3 "lance.catalog.type" = "databuilder",
4 "metastore.catalog.id" = "ac7fxxxxxxxxxxxx",
5 "lance.databuilder.catalog_name" = "yzw_catalog"
6);

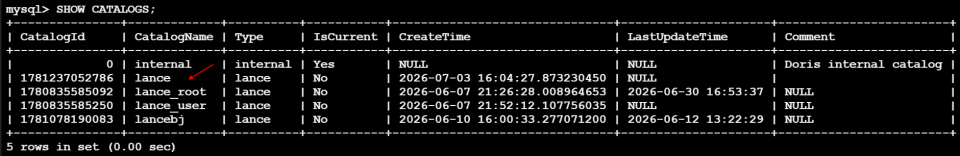

创建成功后,执行 SHOW CATALOGS 即可看到该 Catalog。
1SHOW CATALOGS;

说明:Catalog 只需创建一次,后续会话可直接使用。若
SHOW CATALOGS中没有该 Catalog,请检查 catalog id 与 catalog name 是否与元数据页面一致。
切换当前要操作的 Catalog
1SWITCH lance;

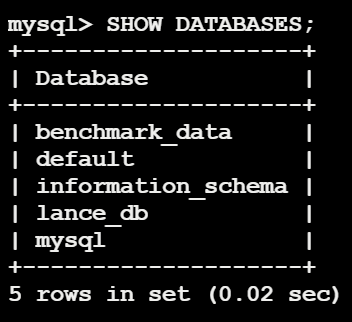

查询 Catalog 中所有的 database
1SHOW DATABASES;

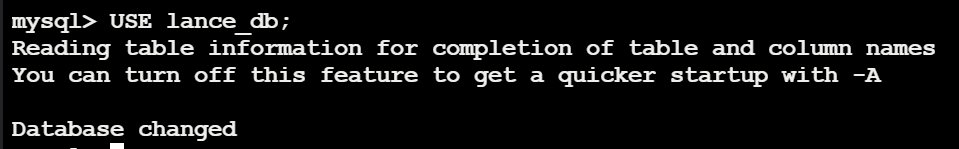

切换当前要操作的 database
进入有 Lance 表的 database,本示例为 lance_db。
1USE lance_db;

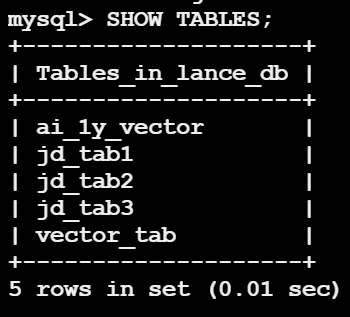

查看 database 里所有的 Lance 表
1SHOW TABLES;

查看表的 schema
1desc spark_all_types;
返回结果即为 Lance 表在 Doris 中呈现的表结构:
1+----------------+-----------------------------+------+------+---------+-------+
2| Field | Type | Null | Key | Default | Extra |
3+----------------+-----------------------------+------+------+---------+-------+
4| col_bool | boolean | Yes | true | NULL | |
5| col_int8 | tinyint | Yes | true | NULL | |
6| col_int16 | smallint | Yes | true | NULL | |
7| col_int32 | int | Yes | true | NULL | |
8| col_int64 | bigint | Yes | true | NULL | |
9| col_float32 | float | Yes | true | NULL | |
10| col_float64 | double | Yes | true | NULL | |
11| col_utf8 | text | Yes | true | NULL | |
12| col_binary | text | Yes | true | NULL | |
13| col_decimal | decimal(18,6) | Yes | true | NULL | |
14| col_date | date | Yes | true | NULL | |
15| col_timestamp | datetime(6) | Yes | true | NULL | |
16| col_array | array<int> | Yes | true | NULL | |
17| col_fixed_list | array<float> | No | true | NULL | |
18| col_struct | struct<name:text,value:int> | Yes | true | NULL | |
19| col_map | map<text,int> | Yes | true | NULL | |
20+----------------+-----------------------------+------+------+---------+-------+
2116 rows in set (0.00 sec)
说明:本手册后续示例均基于上述字段。向量检索使用的字段为 col_fixed_list。
查询表里的数据
Doris 查询 Lance 支持非常丰富且强大的单表、多表联合查询语法。下面是一些常用的查询 Case。
基本查询
1-- 示例1:查询表 spark_all_types 的全部字段
2SELECT * FROM spark_all_types LIMIT 0, 2;
3
4-- 示例2:指定查询部分字段(col_bool布尔型、col_int8 8位整型、col_float32单精度浮点)
5SELECT col_bool, col_int8, col_float32 FROM spark_all_types LIMIT 2;
标量过滤查询
布尔类型过滤
1-- 等值过滤
2SELECT * FROM spark_all_types WHERE col_bool = true;
3SELECT * FROM spark_all_types WHERE col_bool = false;
4
5-- 不等过滤
6SELECT * FROM spark_all_types WHERE col_bool != true;
7
8-- NULL 判断
9SELECT * FROM spark_all_types WHERE col_bool IS NULL;
10SELECT * FROM lance1.lance_db.spark_all_types WHERE col_bool IS NOT NULL;
11
12-- 直接作为过滤条件
13SELECT * FROM spark_all_types WHERE col_bool;
14SELECT * FROM spark_all_types WHERE NOT col_bool;
整数类型过滤(TINYINT / SMALLINT / INT / BIGINT)
1-- 等值
2SELECT * FROM spark_all_types WHERE col_int8 = 127;
3
4-- 不等
5SELECT * FROM spark_all_types WHERE col_int32 != 0;
6SELECT * FROM spark_all_types WHERE col_int64 <> -1;
7
8-- 比较运算
9SELECT * FROM spark_all_types WHERE col_int16 >= -100;
10SELECT * FROM spark_all_types WHERE col_int32 > 1000 AND col_int32 < 5000;
11
12-- BETWEEN
13SELECT * FROM spark_all_types WHERE col_int8 BETWEEN -128 AND 127;
14SELECT * FROM spark_all_types WHERE col_int16 BETWEEN 10 AND 100;
15SELECT * FROM spark_all_types WHERE col_int32 NOT BETWEEN 0 AND 100;
16
17-- IN / NOT IN
18SELECT * FROM spark_all_types WHERE col_int8 IN (1, 2, 3, 127, -128);
19SELECT * FROM spark_all_types WHERE col_int64 NOT IN (0, -1, 1);
20SELECT * FROM spark_all_types WHERE col_int16 IN (SELECT col_int16 FROM spark_all_types WHERE col_int16 > 0);
21
22-- NULL 判断
23SELECT * FROM spark_all_types WHERE col_int32 IS NULL;
24SELECT * FROM spark_all_types WHERE col_int64 IS NOT NULL;
25
26-- 算术表达式
27SELECT * FROM spark_all_types WHERE col_int32 + 1 > 100;
28SELECT * FROM spark_all_types WHERE col_int32 * 2 < 1000;
29SELECT * FROM spark_all_types WHERE abs(col_int32) < 100;
浮点类型过滤(FLOAT / DOUBLE)
1-- 等值
2SELECT * FROM spark_all_types WHERE col_float32 = 0.0;
3SELECT * FROM spark_all_types WHERE col_float64 = 3.1415926535;
4
5-- 比较运算符
6SELECT * FROM spark_all_types WHERE col_float32 > 0.0;
7SELECT * FROM spark_all_types WHERE col_float64 >= -1.0 AND col_float64 <= 1.0;
8SELECT * FROM spark_all_types WHERE col_float64 > 1e10;
9
10-- BETWEEN
11SELECT * FROM spark_all_types WHERE col_float32 BETWEEN -1.0 AND 1.0;
12SELECT * FROM spark_all_types WHERE col_float64 BETWEEN 0.0 AND 100.0;
13
14-- 特殊值
15SELECT * FROM spark_all_types WHERE col_float32 IS NULL;
16SELECT * FROM spark_all_types WHERE col_float64 IS NOT NULL;
17SELECT * FROM spark_all_types WHERE col_float64 != col_float64;
18
19-- IN
20SELECT * FROM spark_all_types WHERE col_float64 IN (1.0, 0.0, -1.0);
21
22-- 跨类型比较
23SELECT * FROM spark_all_types WHERE col_float32 > col_int32;
24SELECT * FROM spark_all_types WHERE col_float64 = CAST(col_int64 AS DOUBLE);
字符串类型过滤
1-- 等值
2SELECT * FROM spark_all_types WHERE col_utf8 = 'hello world';
3SELECT * FROM spark_all_types WHERE col_utf8 = '';
4
5-- 不等
6SELECT * FROM spark_all_types WHERE col_utf8 != 'hello world';
7
8-- 比较(按字典序)
9SELECT * FROM spark_all_types WHERE col_utf8 > 'e';
10SELECT * FROM spark_all_types WHERE col_utf8 < 'z';
11SELECT * FROM spark_all_types WHERE col_utf8 >= 'abc' AND col_utf8 <= 'xyz';
12
13-- LIKE 模式匹配
14SELECT * FROM spark_all_types WHERE col_utf8 LIKE 'hello%';
15SELECT * FROM spark_all_types WHERE col_utf8 LIKE '%world';
16SELECT * FROM spark_all_types WHERE col_utf8 NOT LIKE '%error%';
17
18-- RLIKE / REGEXP 正则
19SELECT * FROM spark_all_types WHERE col_utf8 RLIKE '^[A-Z].*';
20SELECT * FROM spark_all_types WHERE col_utf8 RLIKE '^(hello world|emoji test)$';
21
22-- IN / NOT IN
23SELECT * FROM spark_all_types WHERE col_utf8 IN ('emoji test', 'hello world', 'cherry');
24SELECT * FROM spark_all_types WHERE col_utf8 NOT IN ('', NULL);
25SELECT * FROM spark_all_types WHERE col_utf8 IN ('', NULL);
26
27-- NULL判断
28SELECT * FROM spark_all_types WHERE col_utf8 IS NULL;
29SELECT * FROM spark_all_types WHERE col_utf8 IS NOT NULL;
30
31-- 字符串函数
32SELECT * FROM spark_all_types WHERE length(col_utf8) > 10;
33SELECT * FROM spark_all_types WHERE upper(col_utf8) = 'HELLO WORLD';
34SELECT * FROM lance1.lance_db.spark_all_types WHERE lower(col_utf8) = 'hello world';
35SELECT * FROM spark_all_types WHERE trim(col_utf8) != col_utf8;
36SELECT * FROM spark_all_types WHERE col_utf8 LIKE concat('%', 'test', '%');

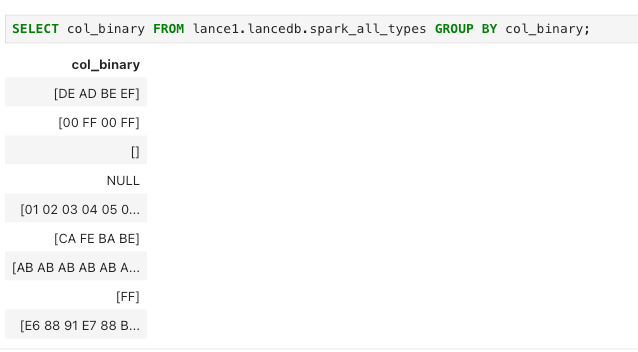

二进制类型过滤
1-- NULL 判断 (下推Rust)
2SELECT * FROM lance1.lance_db.spark_all_types WHERE col_binary IS NULL;
3SELECT * FROM lance1.lance_db.spark_all_types WHERE col_binary IS NOT NULL;
4
5-- 长度过滤(非下推Rust)
6SELECT * FROM spark_all_types WHERE length(col_binary) = 4;
十进制类型过滤(DECIMAL)
1-- 等值
2SELECT * FROM spark_all_types WHERE col_decimal = 88.88;
3SELECT * FROM spark_all_types WHERE col_decimal = -99999.123456;
4
5-- 比较
6SELECT * FROM spark_all_types WHERE col_decimal < -50.5;
7SELECT * FROM spark_all_types WHERE col_decimal >= 0 AND col_decimal <= 999.999999;
8
9-- BETWEEN
10SELECT * FROM spark_all_types WHERE col_decimal BETWEEN -1000.0 AND 1000.0;
11SELECT * FROM spark_all_types WHERE col_decimal NOT BETWEEN 0 AND 100;
12
13-- IN
14SELECT * FROM spark_all_types WHERE col_decimal IN (88.88, 0, 3.5);
15
16-- NULL判断
17SELECT * FROM spark_all_types WHERE col_decimal IS NULL;
18SELECT * FROM spark_all_types WHERE col_decimal IS NOT NULL;
19
20-- 精度边界
21SELECT * FROM spark_all_types WHERE col_decimal = 999999999999.999999;
22SELECT * FROM spark_all_types WHERE col_decimal = -999999999999.999999;
日期类型过滤(DATE)
1-- 等值
2SELECT * FROM spark_all_types WHERE col_date = DATE '2025-05-15';
3SELECT * FROM spark_all_types WHERE col_date = CAST('2025-05-15' AS DATE);
4-- 比较
5SELECT * FROM spark_all_types WHERE col_date > DATE '2024-01-01';
6SELECT * FROM spark_all_types WHERE col_date >= DATE '2024-06-01' AND col_date <= DATE '2028-06-30';
7
8-- BETWEEN
9SELECT * FROM spark_all_types WHERE col_date BETWEEN DATE '2024-01-01' AND DATE '2028-12-31';
10SELECT * FROM spark_all_types WHERE col_date NOT BETWEEN DATE '2020-01-01' AND DATE '2020-12-31';
11
12-- IN
13SELECT * FROM spark_all_types WHERE col_date IN (DATE '2024-02-29', DATE '2025-05-15');
14
15-- NULL
16SELECT * FROM spark_all_types WHERE col_date IS NULL;
17SELECT * FROM spark_all_types WHERE col_date IS NOT NULL;
时间戳类型过滤(TIMESTAMP)
1-- 等值
2SELECT * FROM spark_all_types WHERE col_timestamp = TIMESTAMP '2025-05-15 14:30:00';
3
4-- 比较
5SELECT * FROM spark_all_types WHERE col_timestamp > TIMESTAMP '2024-01-01 00:00:00';
6SELECT * FROM spark_all_types WHERE col_timestamp >= TIMESTAMP '2024-06-01 00:00:00' AND col_timestamp < TIMESTAMP '2028-07-01 00:00:00';
7
8-- BETWEEN
9SELECT * FROM spark_all_types WHERE col_timestamp BETWEEN TIMESTAMP '2024-01-01 00:00:00' AND TIMESTAMP '2025-12-31 23:59:59';
10
11-- IN
12SELECT * FROM spark_all_types WHERE col_timestamp IN (TIMESTAMP '2024-01-01 00:00:00', TIMESTAMP '2025-05-15 14:30:00' );
13
14-- NULL
15SELECT * FROM spark_all_types WHERE col_timestamp IS NULL;
16SELECT * FROM spark_all_types WHERE col_timestamp IS NOT NULL;
17
18-- 时间戳函数
19SELECT * FROM spark_all_types WHERE year(col_timestamp) = 2024;
20SELECT * FROM spark_all_types WHERE month(col_timestamp) >= 6;
21SELECT * FROM spark_all_types WHERE hour(col_timestamp) = 12;
22SELECT * FROM spark_all_types WHERE minute(col_timestamp) = 0;
23SELECT * FROM spark_all_types WHERE second(col_timestamp) > 30;
数组类型过滤
1-- NULL 判断
2SELECT * FROM lance1.lance_db.spark_all_types WHERE col_array IS NULL;
3SELECT * FROM spark_all_types WHERE col_array IS NOT NULL;
4
5-- 数据大小
6SELECT * FROM spark_all_types WHERE size(col_array) > 0;
7
8-- 元素访问
9SELECT * FROM spark_all_types WHERE col_array[1] > 10;
10SELECT * FROM spark_all_types WHERE element_at(col_array, 1) = 42;
11
12-- 包含判断
13SELECT * FROM spark_all_types WHERE array_contains(col_array, 5);
14SELECT * FROM spark_all_types WHERE NOT array_contains(col_array, 0);
15
16-- 数组函数
17SELECT * FROM spark_all_types WHERE array_max(col_array) > 100;
18SELECT * FROM spark_all_types WHERE array_min(col_array) < 0;
结构体类型过滤
使用 STRUCT_ELEMENT(字段名, '子字段名') 访问结构体的子字段。
1-- 字段访问
2SELECT * FROM spark_all_types WHERE STRUCT_ELEMENT(col_struct, 'name') = 'Bob';
3SELECT * FROM spark_all_types WHERE STRUCT_ELEMENT(col_struct,'value') > 100;
4SELECT * FROM lance1.lance_db.spark_all_types WHERE STRUCT_ELEMENT(col_struct,'name') IS NOT NULL;
5SELECT * FROM lance1.lance_db.spark_all_types WHERE STRUCT_ELEMENT(col_struct,'value') BETWEEN 0 AND 50;
6
7-- 结构体整体
8SELECT * FROM lance1.lance_db.spark_all_types WHERE col_struct IS NULL;
9 SELECT * FROM lance1.lance_db.spark_all_types WHERE col_struct IS NOT NULL;
10
11-- 结构体字段组合
12SELECT * FROM spark_all_types WHERE STRUCT_ELEMENT(col_struct,'name') LIKE 'Al%' AND STRUCT_ELEMENT(col_struct,'value') > 0;
13SELECT * FROM lance1.lance_db.spark_all_types WHERE STRUCT_ELEMENT(col_struct,'name') IN ('Alice', 'Bob', 'baz');
14SELECT * FROM spark_all_types WHERE length(STRUCT_ELEMENT(col_struct,'name')) > 5;
NULL 安全比较(<=>)
1SELECT * FROM lance1.lance_db.spark_all_types WHERE col_utf8 <=> NULL;
2SELECT * FROM lance1.lance_db.spark_all_types WHERE col_int32 <=> 0;
3SELECT * FROM lance1.lance_db.spark_all_types WHERE NOT (col_utf8 <=> col_utf8);
LIMIT / ORDER BY 的过滤
1SELECT * FROM lance1.lance_db.spark_all_types WHERE col_utf8 IS NOT NULL ORDER BY col_utf8 DESC LIMIT 5;
2SELECT * FROM lance1.lance_db.spark_all_types WHERE col_float64 > 0 ORDER BY col_float64 LIMIT 10 OFFSET 5;
3SELECT * FROM lance1.lance_db.spark_all_types WHERE col_date IS NOT NULL ORDER BY col_date LIMIT 20;
逻辑运算符组合
1-- AND
2SELECT * FROM lance1.lance_db.spark_all_types WHERE col_int32 > 0 AND col_utf8 IS NOT NULL;
3 SELECT * FROM lance1.lance_db.spark_all_types WHERE col_bool = true AND col_int64 > 100 AND col_float64 < 1.0;
4
5-- OR
6SELECT * FROM lance1.lance_db.spark_all_types WHERE col_int32 < 0 OR col_int32 > 1000;
7SELECT * FROM lance1.lance_db.spark_all_types WHERE col_utf8 = 'Lance Chinese Test ' OR col_utf8 = 'warning';
8
9-- NOT
10SELECT * FROM lance1.lance_db.spark_all_types WHERE NOT (col_bool = true AND col_int32 > 0)
11
12-- 复杂组合
13SELECT * FROM lance1.lance_db.spark_all_types WHERE (col_int32 > 0 AND col_float64 < 100.0) OR (col_utf8 LIKE 'special%' AND col_bool = true);
14SELECT * FROM spark_all_types WHERE col_date > DATE '2024-01-01' AND (col_int32 IN (1, 2, 3) OR col_utf8 IS NOT NULL) AND col_decimal BETWEEN 0 AND 1000;
15SELECT * FROM lance1.lance_db.spark_all_types WHERE NOT (col_int64 IS NULL OR col_float32 IS NULL) AND (STRUCT_ELEMENT(col_struct,'value') > 50 OR array_contains(col_array, 99));
16SELECT * FROM lance1.lance_db.spark_all_types WHERE (col_int8 = 1 OR col_int8 = 2 OR col_int8 = 3 OR col_int8 = 4 OR col_int8 = 5);
跨列比较
1SELECT * FROM spark_all_types WHERE col_int32 = col_int64;
2SELECT * FROM spark_all_types WHERE CAST(col_int32 AS BIGINT) < col_int64;
3SELECT * FROM spark_all_types WHERE col_int32 > STRUCT_ELEMENT(col_struct, 'value');
类型转换(CAST)
1SELECT * FROM spark_all_types WHERE CAST(col_int32 AS STRING) = '12345';
2SELECT * FROM spark_all_types WHERE CAST(col_date AS STRING) = '2025-05-15';
3SELECT * FROM lance1.lance_db.spark_all_types WHERE CAST(col_utf8 AS INT) > 100;
4SELECT * FROM spark_all_types WHERE CAST(col_float64 AS INT) = 3;
5SELECT * FROM spark_all_types WHERE CAST(col_timestamp AS DATE) = DATE '2025-05-15';
6SELECT * FROM lance1.lance_db.spark_all_types WHERE CAST(col_int8 AS INT) + col_int32 > 200;
CASE WHEN 表达式过滤
1SELECT * FROM lance1.lance_db.spark_all_types WHERE CASE WHEN col_int32 > 0 THEN 'positive' ELSE 'non_positive' END = 'positive';
2SELECT * FROM lance1.lance_db.spark_all_types WHERE CASE WHEN col_float64 > 100 THEN 1 WHEN col_float64 > 0 THEN 2 ELSE 3 END = 2;
聚合 + HAVING 过滤
1SELECT col_bool, count(*) AS cnt FROM lance1.lance_db.spark_all_types WHERE col_int32 > 0 GROUP BY col_bool HAVING count(*) > 1;
2SELECT year(col_date) AS yr, avg(col_float64) AS avg_val FROM lance1.lance_db.spark_all_types WHERE col_float64 IS NOT NULL AND col_date IS NOT NULL GROUP BY year(col_date) HAVING avg(col_float64) > 10.0;
向量查询
当前支持 IVF_HNSW_SQ 和 IVF_HNSW_FLAT 这两个向量索引,不建索引会走 KNN。向量字段类型必须是 FixedSizeListArray。
使用 ann_distance 计算查询向量与向量字段的距离,配合 ORDER BY ... ASC LIMIT n 实现 Top-K 检索,__DISTANCE 为距离值,可一并查询出来。
1-- topk 向量检索
2SELECT *,__DISTANCE FROM spark_all_types ORDER BY ann_distance(col_fixed_list, '[0.1, 0.2, 0.3, 0.4]') ASC LIMIT 5;
3
4-- 带标量过滤的 topk 向量检索
5SELECT *,__DISTANCE FROM spark_all_types where col_int8 >=1 AND col_int16 >= 500 ORDER BY ann_distance(col_fixed_list, '[0.1, 0.2, 0.3, 0.4]') ASC LIMIT 5;
注意:查询向量的维度必须与向量字段的维度一致。
聚合统计查询
1-- COUNT
2SELECT COUNT(col_int32) FROM lance1.lancedb.spark_all_types;
3SELECT COUNT(col_float32) FROM lance1.lancedb.spark_all_types;
4SELECT COUNT(DISTINCT col_decimal) FROM lance1.lancedb.spark_all_types;
5
6-- SUM聚合
7SELECT SUM(col_int32) FROM lance1.lancedb.spark_all_types;
8SELECT SUM(col_float32) FROM lance1.lancedb.spark_all_types;
9SELECT SUM(col_decimal) FROM lance1.lancedb.spark_all_types;
10
11-- AVG聚合
12SELECT AVG(col_int32) FROM lance1.lancedb.spark_all_types;
13SELECT AVG(col_float32) FROM lance1.lancedb.spark_all_types;
14SELECT AVG(col_decimal) FROM lance1.lancedb.spark_all_types;
15
16-- MIN / MAX聚合
17SELECT MIN(col_int32) FROM lance1.lancedb.spark_all_types;
18SELECT MIN(col_float32) FROM lance1.lancedb.spark_all_types;
19SELECT MAX(col_bool) FROM lance1.lancedb.spark_all_types;
20SELECT MAX(col_int32) FROM lance1.lancedb.spark_all_types;
21
22-- GROUP BY聚合
23SELECT col_int32 FROM lance1.lancedb.spark_all_types GROUP BY col_int32;
24SELECT col_float32 FROM lance1.lancedb.spark_all_types GROUP BY col_float32;
25SELECT col_utf8 FROM lance1.lancedb.spark_all_types GROUP BY col_utf8;
26SELECT col_binary FROM lance1.lancedb.spark_all_types GROUP BY col_binary;
说明:Doris 默认将二进制内容转为 UTF-8 字符串显示,因此查询 col_binary 时可能出现乱码;Spark 默认转为十六进制显示。若希望与 Spark 显示一致,使用
HEX(col_binary)。![]()
多表融合查询
多表融合查询使用 HYBRID ... ON 关联两张表,并通过 hybrid_search 融合多路 ann_distance 的检索结果,__RANK 为融合后的排序值。第一个参数为 JSON 字符串,用于指定融合方式:rerank 为 RRF 时使用倒数排序融合,为 WEIGHT 时按 weights 指定的权重融合,candidates 为每路参与融合的候选数量。
1SELECT
2 COALESCE(d.doc_id, e.doc_id) AS doc_id,
3 d.title,
4 __RANK
5FROM doc_text_vectors d
6HYBRID doc_image_vectors e ON d.doc_id = e.doc_id
7ORDER BY hybrid_search(
8 '{"rerank":"RRF","c":60,"candidates":100}',
9 ann_distance(
10 d.text_embedding,
11 embedding('apple market cap', 'text', 'text_embedding_model')
12 ),
13 ann_distance(e.image_embedding, [0.1, 0.2, 0.3, 0.4])
14)
15LIMIT 10;
1SELECT
2 COALESCE(d.doc_id, e.doc_id) AS doc_id,
3 d.title,
4 __RANK
5FROM doc_text_vectors d
6HYBRID doc_image_vectors e ON d.doc_id = e.doc_id
7ORDER BY hybrid_search(
8 '{"rerank":"WEIGHT","weights":[0.4,0.6],"candidates":200}',
9 ann_distance(
10 d.text_embedding,
11 embedding('apple market cap', 'text', 'text_embedding_model')
12 ),
13 ann_distance(e.image_embedding, [0.1, 0.2, 0.3, 0.4])
14)
15LIMIT 10;
说明:示例中的 doc_text_vectors、doc_image_vectors 和 text_embedding_model 需替换为您实际的表名和模型名称。
Lance + Iceberg 跨 Catalog 联邦查询
Lance 表可与其他 Catalog 中的表(如 Iceberg 表)在同一条 SQL 中关联查询,只需使用 catalog.database.table 三段式全名。下面以 TPCH 场景为例,测试8张测试表,3张数据量较大的事实表放在 Iceberg Catalog,其余表放在 Lance Catalog。
1select
2 l_returnflag,
3 l_linestatus,
4 sum(l_quantity) as sum_qty,
5 sum(l_extendedprice) as sum_base_price,
6 sum(l_extendedprice * (1 - l_discount)) as sum_disc_price,
7 sum(l_extendedprice * (1 - l_discount) * (1 + l_tax)) as sum_charge,
8 avg(l_quantity) as avg_qty,
9 avg(l_extendedprice) as avg_price,
10 avg(l_discount) as avg_disc,
11 count(*) as count_order
12from
13 iceberg.icebergdb.lineitem
14where
15 l_shipdate <= date '1998-12-01' - interval '90' day
16group by
17 l_returnflag,
18 l_linestatus
19order by
20 l_returnflag,
21 l_linestatus;
1select
2 s_acctbal,
3 s_name,
4 n_name,
5 p_partkey,
6 p_mfgr,
7 s_address,
8 s_phone,
9 s_comment
10from
11 lance.lancedb.part,
12 lance.lancedb.supplier,
13 iceberg.icebergdb.partsupp,
14 lance.lancedb.nation,
15 lance.lancedb.region
16where
17 p_partkey = ps_partkey
18 and s_suppkey = ps_suppkey
19 and p_size = 15
20 and p_type like '%BRASS'
21 and s_nationkey = n_nationkey
22 and n_regionkey = r_regionkey
23 and r_name = 'EUROPE'
24 and ps_supplycost = (
25 select
26 min(ps_supplycost)
27 from
28 iceberg.icebergdb.partsupp,
29 lance.lancedb.supplier,
30 lance.lancedb.nation,
31 lance.lancedb.region
32 where
33 p_partkey = ps_partkey
34 and s_suppkey = ps_suppkey
35 and s_nationkey = n_nationkey
36 and n_regionkey = r_regionkey
37 and r_name = 'EUROPE'
38)
39order by
40 s_acctbal desc,
41 n_name,
42 s_name,
43 p_partkey
44limit 100;
1select
2 l_orderkey,
3 sum(l_extendedprice * (1 - l_discount)) as revenue,
4 o_orderdate,
5 o_shippriority
6from
7 lance.lancedb.customer,
8 iceberg.icebergdb.orders,
9 iceberg.icebergdb.lineitem
10where
11 c_mktsegment = 'BUILDING'
12 and c_custkey = o_custkey
13 and l_orderkey = o_orderkey
14 and o_orderdate < date '1995-03-15'
15 and l_shipdate > date '1995-03-15'
16group by
17 l_orderkey,
18 o_orderdate,
19 o_shippriority
20order by
21 revenue desc,
22 o_orderdate
23limit 10;
1select
2 o_orderpriority,
3 count(*) as order_count
4from
5 iceberg.icebergdb.orders
6where
7 o_orderdate >= date '1993-07-01'
8 and o_orderdate < date '1993-07-01' + interval '3' month
9 and exists (
10 select
11 *
12 from
13 iceberg.icebergdb.lineitem
14 where
15 l_orderkey = o_orderkey
16 and l_commitdate < l_receiptdate
17 )
18group by
19 o_orderpriority
20order by
21 o_orderpriority;
1select
2 n_name,
3 sum(l_extendedprice * (1 - l_discount)) as revenue
4from
5 lance.lancedb.customer,
6 iceberg.icebergdb.orders,
7 iceberg.icebergdb.lineitem,
8 lance.lancedb.supplier,
9 lance.lancedb.nation,
10 lance.lancedb.region
11where
12 c_custkey = o_custkey
13 and l_orderkey = o_orderkey
14 and l_suppkey = s_suppkey
15 and c_nationkey = s_nationkey
16 and s_nationkey = n_nationkey
17 and n_regionkey = r_regionkey
18 and r_name = 'ASIA'
19 and o_orderdate >= date '1994-01-01'
20 and o_orderdate < date '1994-01-01' + interval '1' year
21group by
22 n_name
23order by
24 revenue desc;
1select
2 sum(l_extendedprice * l_discount) as revenue
3from
4 iceberg.icebergdb.lineitem
5where
6 l_shipdate >= date '1994-01-01'
7 and l_shipdate < date '1994-01-01' + interval '1' year
8 and l_discount between .06 - 0.01 and .06 + 0.01
9 and l_quantity < 24;
1select
2 supp_nation,
3 cust_nation,
4 l_year,
5 sum(volume) as revenue
6from
7 (
8 select
9 n1.n_name as supp_nation,
10 n2.n_name as cust_nation,
11 extract(year from l_shipdate) as l_year,
12 l_extendedprice * (1 - l_discount) as volume
13 from
14 lance.lancedb.supplier,
15 iceberg.icebergdb.lineitem,
16 iceberg.icebergdb.orders,
17 lance.lancedb.customer,
18 lance.lancedb.nation n1,
19 lance.lancedb.nation n2
20 where
21 s_suppkey = l_suppkey
22 and o_orderkey = l_orderkey
23 and c_custkey = o_custkey
24 and s_nationkey = n1.n_nationkey
25 and c_nationkey = n2.n_nationkey
26 and (
27 (n1.n_name = 'FRANCE' and n2.n_name = 'GERMANY')
28 or (n1.n_name = 'GERMANY' and n2.n_name = 'FRANCE')
29 )
30 and l_shipdate between date '1995-01-01' and date '1996-12-31'
31 ) as shipping
32group by
33 supp_nation,
34 cust_nation,
35 l_year
36order by
37 supp_nation,
38 cust_nation,
39 l_year;
1select
2 o_year,
3 sum(case
4 when nation = 'BRAZIL' then volume
5 else 0
6 end) / sum(volume) as mkt_share
7from
8 (
9 select
10 extract(year from o_orderdate) as o_year,
11 l_extendedprice * (1 - l_discount) as volume,
12 n2.n_name as nation
13 from
14 lance.lancedb.part,
15 lance.lancedb.supplier,
16 iceberg.icebergdb.lineitem,
17 iceberg.icebergdb.orders,
18 lance.lancedb.customer,
19 lance.lancedb.nation n1,
20 lance.lancedb.nation n2,
21 lance.lancedb.region
22 where
23 p_partkey = l_partkey
24 and s_suppkey = l_suppkey
25 and l_orderkey = o_orderkey
26 and o_custkey = c_custkey
27 and c_nationkey = n1.n_nationkey
28 and n1.n_regionkey = r_regionkey
29 and r_name = 'AMERICA'
30 and s_nationkey = n2.n_nationkey
31 and o_orderdate between date '1995-01-01' and date '1996-12-31'
32 and p_type = 'ECONOMY ANODIZED STEEL'
33 ) as all_nations
34group by
35 o_year
36order by
37 o_year;
1select
2 nation,
3 o_year,
4 sum(amount) as sum_profit
5from
6 (
7 select
8 n_name as nation,
9 extract(year from o_orderdate) as o_year,
10 l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount
11 from
12 lance.lancedb.part,
13 lance.lancedb.supplier,
14 iceberg.icebergdb.lineitem,
15 iceberg.icebergdb.partsupp,
16 iceberg.icebergdb.orders,
17 lance.lancedb.nation
18 where
19 s_suppkey = l_suppkey
20 and ps_suppkey = l_suppkey
21 and ps_partkey = l_partkey
22 and p_partkey = l_partkey
23 and o_orderkey = l_orderkey
24 and s_nationkey = n_nationkey
25 and p_name like '%green%'
26 ) as profit
27group by
28 nation,
29 o_year
30order by
31 nation,
32 o_year desc;
1select
2 c_custkey,
3 c_name,
4 sum(l_extendedprice * (1 - l_discount)) as revenue,
5 c_acctbal,
6 n_name,
7 c_address,
8 c_phone,
9 c_comment
10from
11 lance.lancedb.customer,
12 iceberg.icebergdb.orders,
13 iceberg.icebergdb.lineitem,
14 lance.lancedb.nation
15where
16 c_custkey = o_custkey
17 and l_orderkey = o_orderkey
18 and o_orderdate >= date '1993-10-01'
19 and o_orderdate < date '1993-10-01' + interval '3' month
20 and l_returnflag = 'R'
21 and c_nationkey = n_nationkey
22group by
23 c_custkey,
24 c_name,
25 c_acctbal,
26 c_phone,
27 n_name,
28 c_address,
29 c_comment
30order by
31 revenue desc
32limit 20;
1select
2 ps_partkey,
3 sum(ps_supplycost * ps_availqty) as value
4from
5 iceberg.icebergdb.partsupp,
6 lance.lancedb.supplier,
7 lance.lancedb.nation
8where
9 ps_suppkey = s_suppkey
10 and s_nationkey = n_nationkey
11 and n_name = 'GERMANY'
12group by
13 ps_partkey having
14 sum(ps_supplycost * ps_availqty) > (
15 select
16 sum(ps_supplycost * ps_availqty) * 0.000002
17 from
18 iceberg.icebergdb.partsupp,
19 lance.lancedb.supplier,
20 lance.lancedb.nation
21 where
22 ps_suppkey = s_suppkey
23 and s_nationkey = n_nationkey
24 and n_name = 'GERMANY'
25 )
26order by
27 value desc;
1select
2 l_shipmode,
3 sum(case
4 when o_orderpriority = '1-URGENT'
5 or o_orderpriority = '2-HIGH'
6 then 1
7 else 0
8 end) as high_line_count,
9 sum(case
10 when o_orderpriority <> '1-URGENT'
11 and o_orderpriority <> '2-HIGH'
12 then 1
13 else 0
14 end) as low_line_count
15from
16 iceberg.icebergdb.orders,
17 iceberg.icebergdb.lineitem
18where
19 o_orderkey = l_orderkey
20 and l_shipmode in ('MAIL', 'SHIP')
21 and l_commitdate < l_receiptdate
22 and l_shipdate < l_commitdate
23 and l_receiptdate >= date '1994-01-01'
24 and l_receiptdate < date '1994-01-01' + interval '1' year
25group by
26 l_shipmode
27order by
28 l_shipmode;
1select
2 c_count,
3 count(*) as custdist
4from
5 (
6 select
7 c_custkey,
8 count(o_orderkey) as c_count
9 from
10 lance.lancedb.customer left outer join iceberg.icebergdb.orders on
11 c_custkey = o_custkey
12 and o_comment not like '%special%requests%'
13 group by
14 c_custkey
15 ) as c_orders
16group by
17 c_count
18order by
19 custdist desc,
20 c_count desc;
1select
2 100.00 * sum(case
3 when p_type like 'PROMO%'
4 then l_extendedprice * (1 - l_discount)
5 else 0
6 end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue
7from
8 iceberg.icebergdb.lineitem,
9 lance.lancedb.part
10where
11 l_partkey = p_partkey
12 and l_shipdate >= date '1995-09-01'
13 and l_shipdate < date '1995-09-01' + interval '1' month;
1select
2 s_suppkey,
3 s_name,
4 s_address,
5 s_phone,
6 total_revenue
7from
8 lance.lancedb.supplier,
9 (
10 select
11 l_suppkey as supplier_no,
12 sum(l_extendedprice * (1 - l_discount)) as total_revenue
13 from
14 iceberg.icebergdb.lineitem
15 where
16 l_shipdate >= date '1996-01-01'
17 and l_shipdate < date '1996-01-01' + interval '3' month
18 group by
19 l_suppkey
20 ) revenue0
21where
22 s_suppkey = supplier_no
23 and total_revenue = (
24 select
25 max(total_revenue)
26 from
27 (
28 select
29 l_suppkey as supplier_no,
30 sum(l_extendedprice * (1 - l_discount)) as total_revenue
31 from
32 iceberg.icebergdb.lineitem
33 where
34 l_shipdate >= date '1996-01-01'
35 and l_shipdate < date '1996-01-01' + interval '3' month
36 group by
37 l_suppkey
38 ) revenue0
39 )
40order by
41 s_suppkey;
1select
2 p_brand,
3 p_type,
4 p_size,
5 count(distinct ps_suppkey) as supplier_cnt
6from
7 iceberg.icebergdb.partsupp,
8 lance.lancedb.part
9where
10 p_partkey = ps_partkey
11 and p_brand <> 'Brand#45'
12 and p_type not like 'MEDIUM POLISHED%'
13 and p_size in (49, 14, 23, 45, 19, 3, 36, 9)
14 and ps_suppkey not in (
15 select
16 s_suppkey
17 from
18 lance.lancedb.supplier
19 where
20 s_comment like '%Customer%Complaints%'
21 )
22group by
23 p_brand,
24 p_type,
25 p_size
26order by
27 supplier_cnt desc,
28 p_brand,
29 p_type,
30 p_size;
1select
2 sum(l_extendedprice) / 7.0 as avg_yearly
3from
4 iceberg.icebergdb.lineitem,
5 lance.lancedb.part
6where
7 p_partkey = l_partkey
8 and p_brand = 'Brand#23'
9 and p_container = 'MED BOX'
10 and l_quantity < (
11 select
12 0.2 * avg(l_quantity)
13 from
14 iceberg.icebergdb.lineitem
15 where
16 l_partkey = p_partkey
17 );
1select
2 c_name,
3 c_custkey,
4 o_orderkey,
5 o_orderdate,
6 o_totalprice,
7 sum(l_quantity)
8from
9 lance.lancedb.customer,
10 iceberg.icebergdb.orders,
11 iceberg.icebergdb.lineitem
12where
13 o_orderkey in (
14 select
15 l_orderkey
16 from
17 iceberg.icebergdb.lineitem
18 group by
19 l_orderkey having
20 sum(l_quantity) > 300
21 )
22 and c_custkey = o_custkey
23 and o_orderkey = l_orderkey
24group by
25 c_name,
26 c_custkey,
27 o_orderkey,
28 o_orderdate,
29 o_totalprice
30order by
31 o_totalprice desc,
32 o_orderdate
33limit 100;
1select
2 sum(l_extendedprice* (1 - l_discount)) as revenue
3from
4 iceberg.icebergdb.lineitem,
5 lance.lancedb.part
6where
7 (
8 p_partkey = l_partkey
9 and p_brand = 'Brand#12'
10 and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG')
11 and l_quantity >= 1 and l_quantity <= 1 + 10
12 and p_size between 1 and 5
13 and l_shipmode in ('AIR', 'AIR REG')
14 and l_shipinstruct = 'DELIVER IN PERSON'
15 )
16 or
17 (
18 p_partkey = l_partkey
19 and p_brand = 'Brand#23'
20 and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
21 and l_quantity >= 10 and l_quantity <= 10 + 10
22 and p_size between 1 and 10
23 and l_shipmode in ('AIR', 'AIR REG')
24 and l_shipinstruct = 'DELIVER IN PERSON'
25 )
26 or
27 (
28 p_partkey = l_partkey
29 and p_brand = 'Brand#34'
30 and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
31 and l_quantity >= 20 and l_quantity <= 20 + 10
32 and p_size between 1 and 15
33 and l_shipmode in ('AIR', 'AIR REG')
34 and l_shipinstruct = 'DELIVER IN PERSON'
35 );
1select
2 s_name,
3 s_address
4from
5 lance.lancedb.supplier,
6 lance.lancedb.nation
7where
8 s_suppkey in (
9 select
10 ps_suppkey
11 from
12 iceberg.icebergdb.partsupp
13 where
14 ps_partkey in (
15 select
16 p_partkey
17 from
18 lance.lancedb.part
19 where
20 p_name like 'forest%'
21 )
22 and ps_availqty > (
23 select
24 0.5 * sum(l_quantity)
25 from
26 iceberg.icebergdb.lineitem
27 where
28 l_partkey = ps_partkey
29 and l_suppkey = ps_suppkey
30 and l_shipdate >= date '1994-01-01'
31 and l_shipdate < date '1994-01-01' + interval '1' year
32 )
33 )
34 and s_nationkey = n_nationkey
35 and n_name = 'CANADA'
36order by
37 s_name;
1select
2 s_name,
3 count(*) as numwait
4from
5 lance.lancedb.supplier,
6 iceberg.icebergdb.lineitem l1,
7 iceberg.icebergdb.orders,
8 lance.lancedb.nation
9where
10 s_suppkey = l1.l_suppkey
11 and o_orderkey = l1.l_orderkey
12 and o_orderstatus = 'F'
13 and l1.l_receiptdate > l1.l_commitdate
14 and exists (
15 select
16 *
17 from
18 iceberg.icebergdb.lineitem l2
19 where
20 l2.l_orderkey = l1.l_orderkey
21 and l2.l_suppkey <> l1.l_suppkey
22 )
23 and not exists (
24 select
25 *
26 from
27 iceberg.icebergdb.lineitem l3
28 where
29 l3.l_orderkey = l1.l_orderkey
30 and l3.l_suppkey <> l1.l_suppkey
31 and l3.l_receiptdate > l3.l_commitdate
32 )
33 and s_nationkey = n_nationkey
34 and n_name = 'SAUDI ARABIA'
35group by
36 s_name
37order by
38 numwait desc,
39 s_name
40limit 100;
1select
2 cntrycode,
3 count(*) as numcust,
4 sum(c_acctbal) as totacctbal
5from
6 (
7 select
8 substring(c_phone, 1, 2) as cntrycode,
9 c_acctbal
10 from
11 lance.lancedb.customer
12 where
13 substring(c_phone, 1, 2) in
14 ('13', '31', '23', '29', '30', '18', '17')
15 and c_acctbal > (
16 select
17 avg(c_acctbal)
18 from
19 lance.lancedb.customer
20 where
21 c_acctbal > 0.00
22 and substring(c_phone, 1, 2) in
23 ('13', '31', '23', '29', '30', '18', '17')
24 )
25 and not exists (
26 select
27 *
28 from
29 iceberg.icebergdb.orders
30 where
31 o_custkey = c_custkey
32 )
33 ) as custsale
34group by
35 cntrycode
36order by
37 cntrycode;
其它操作指南
向量索引构建
未建索引时向量检索走 KNN 精确计算,数据量增大后耗时会明显上升。可参考下表选择索引类型:
| 场景 | 推荐索引 | 原因 |
|---|---|---|
| ≤10 万向量,追求最高精度 | 可以不建索引,走 KNN | 计算量不大,精确距离计算 |
| 10 万~1000 万 | IVF_HNSW_FLAT | 查询速度快,同时保持接近精确检索 |
| 1000 万~1 亿 | IVF_HNSW_SQ | 在精度、速度、内存之间取得较好平衡 |
常见问题
公网访问 Doris
公网访问 Doris 的链路为:公网请求 → EIP(Elastic IP,弹性公网 IP)→ BLB(Baidu Load Balance,负载均衡)→ Doris 实例。创建 Doris 实例时会自动创建一个对应的 BLB,这个 BLB 类似一个虚拟 IP,后面对应着 Doris 集群的多个实例,提供了负载均衡的能力。
操作步骤如下:

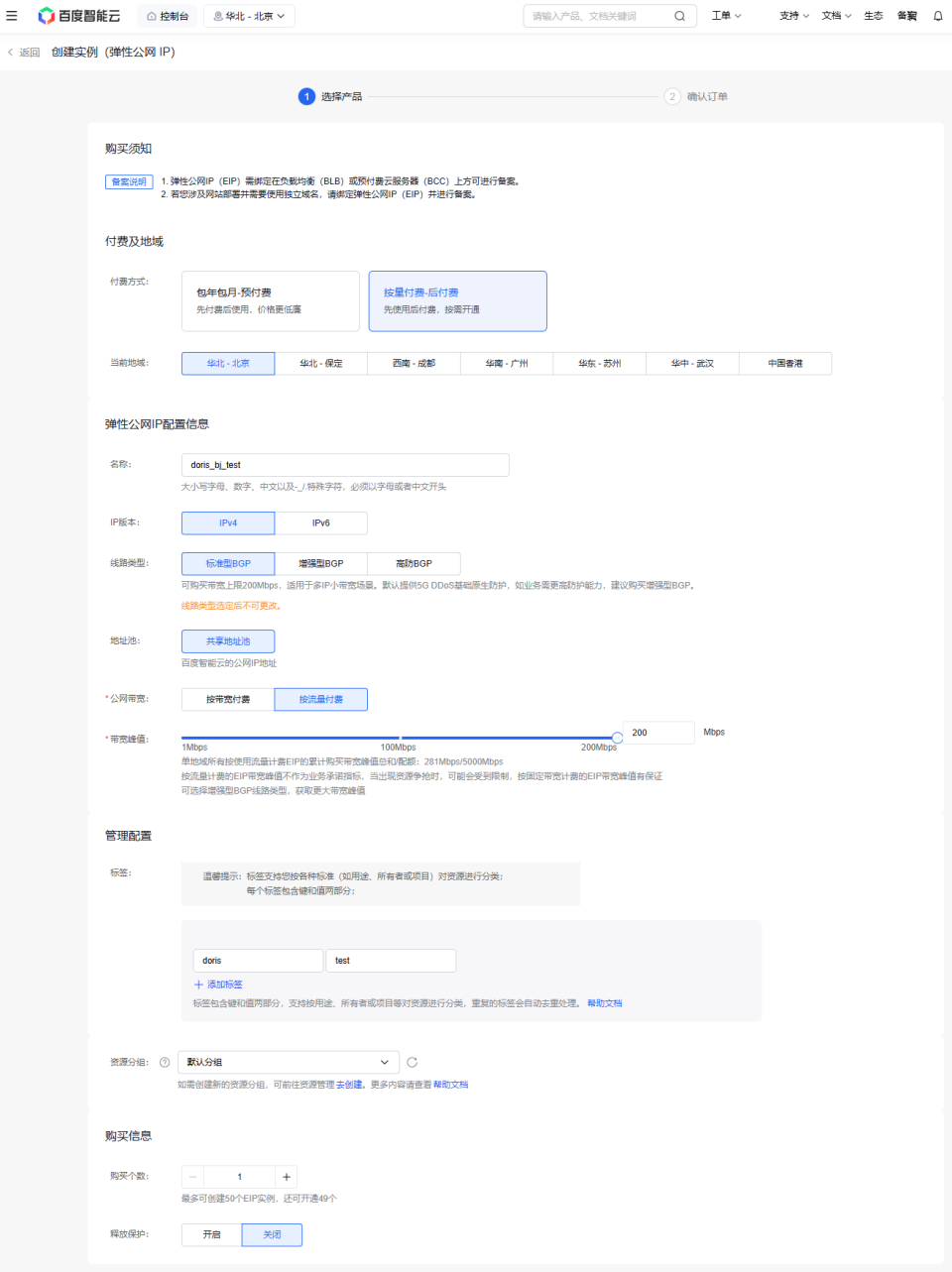

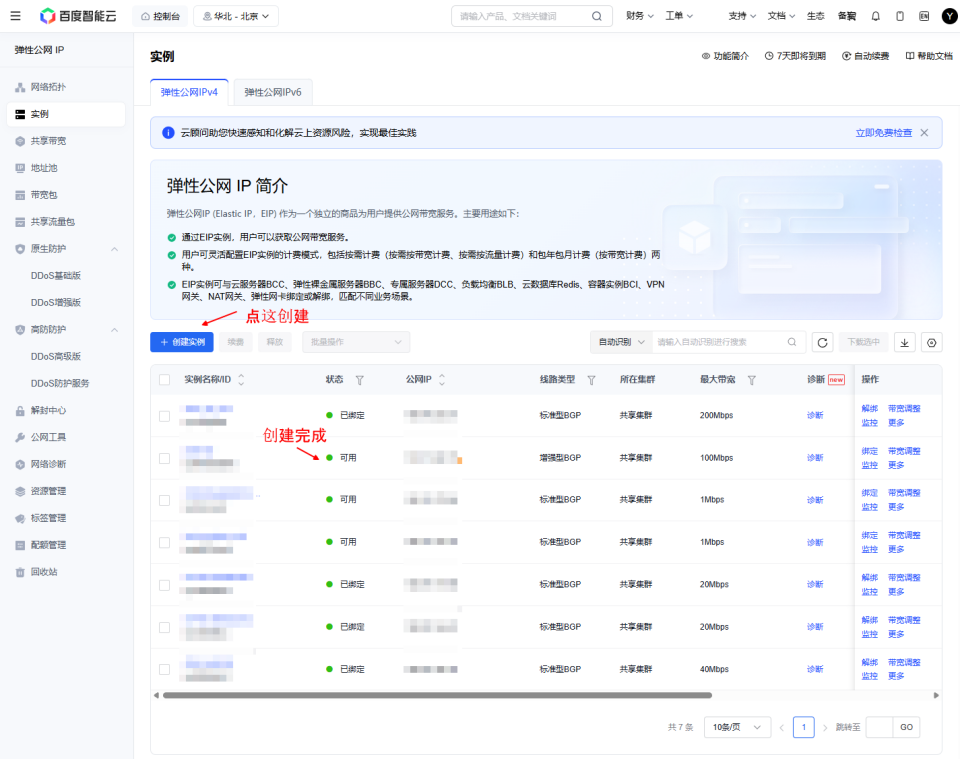

- 在 EIP 控制台创建 EIP。

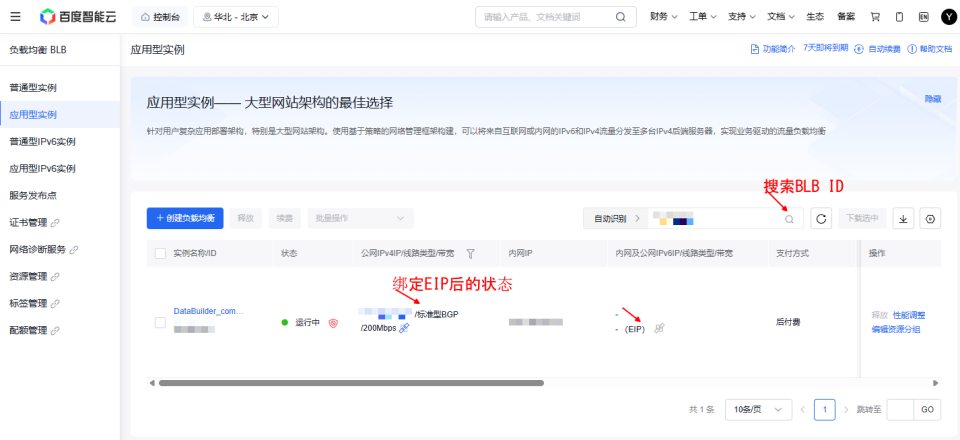

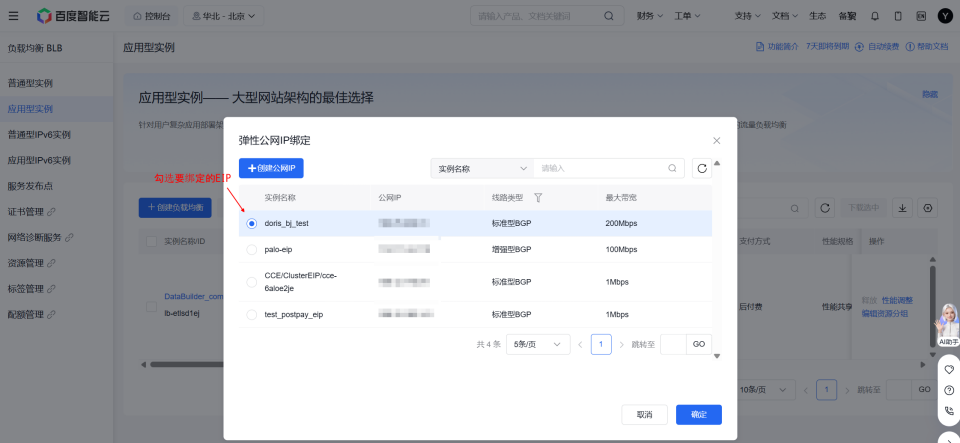

- 进入 BLB 控制台,用 Doris 计算实例的 ID 在应用型实例里搜索到对应的 BLB,将步骤 1 创建的 EIP 绑定到该 BLB。

- 测试公网访问:
1mysql -h{doris_ip} -P9030 -u{doris_user} -p{user_password}
注意:绑定公网 IP 会使 Doris 实例暴露在公网,请按最小化原则配置安全组规则,仅放通必要的来源 IP 和端口,并使用强密码。
评价此篇文章
