A2A接口文档
1 协议标准
本协议遵循 Google 发布的 A2A协议0.2.6版本规范。客户端请基于本版本规范进行集成。
2 接入流程

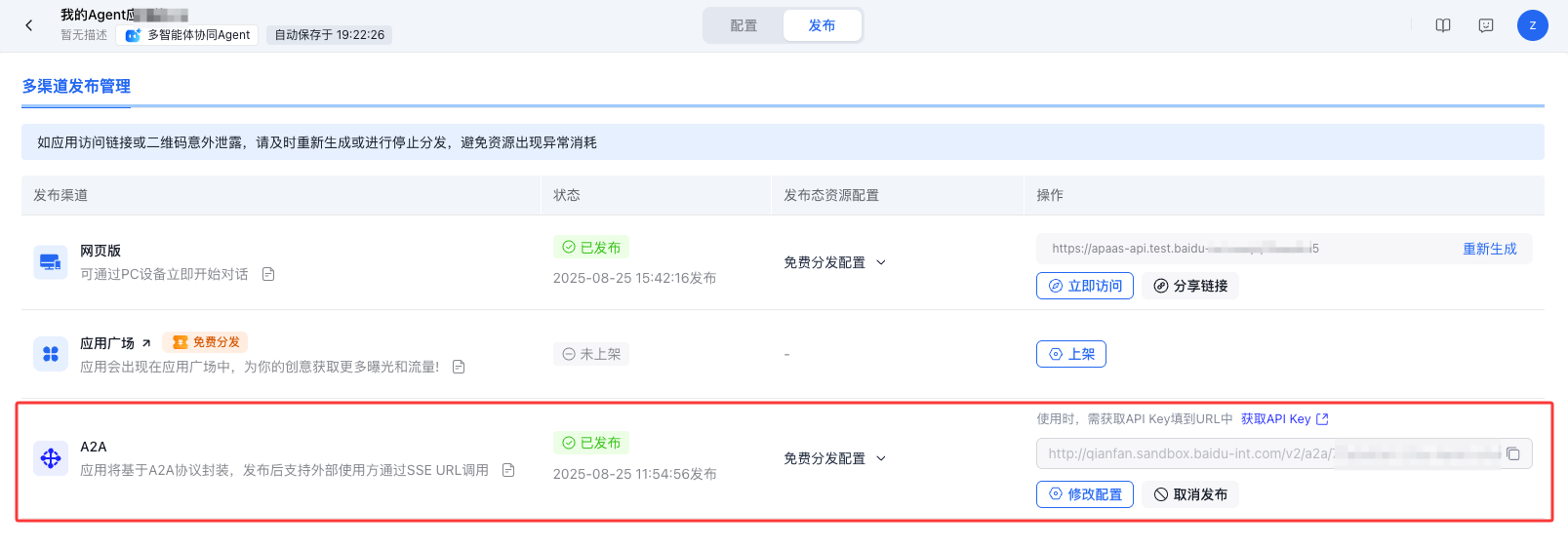

2.1 应用发布A2A渠道
将您搭建的应用发布成A2A服务,将基于A2A协议封装您的应用,发布后支持外部使用方通过SSE URL调用,可以在其他平台或使用A2A Client对接A2A服务的应用。
点击【复制】按钮复制应用发布后的AgentCard URL,请求时获取个人的API Key填到URL中,能够获取到A2A的AgentCard。AgentCard作为A2A服务的“数字名片”,对于发现和发起交互Agent至关重要。
2.2 获取AgentCard配置信息
访问AgentCard URL拿到我们发布成A2A的应用的Agent描述、Agent能力信息、服务端点和身份验证信息。A2A Client解析信息以确定该Agent是否适合给定的任务、如何构建其请求以及如何进行安全通信。AgentCard及示例参考: "3.1 AgentCard" 小节。

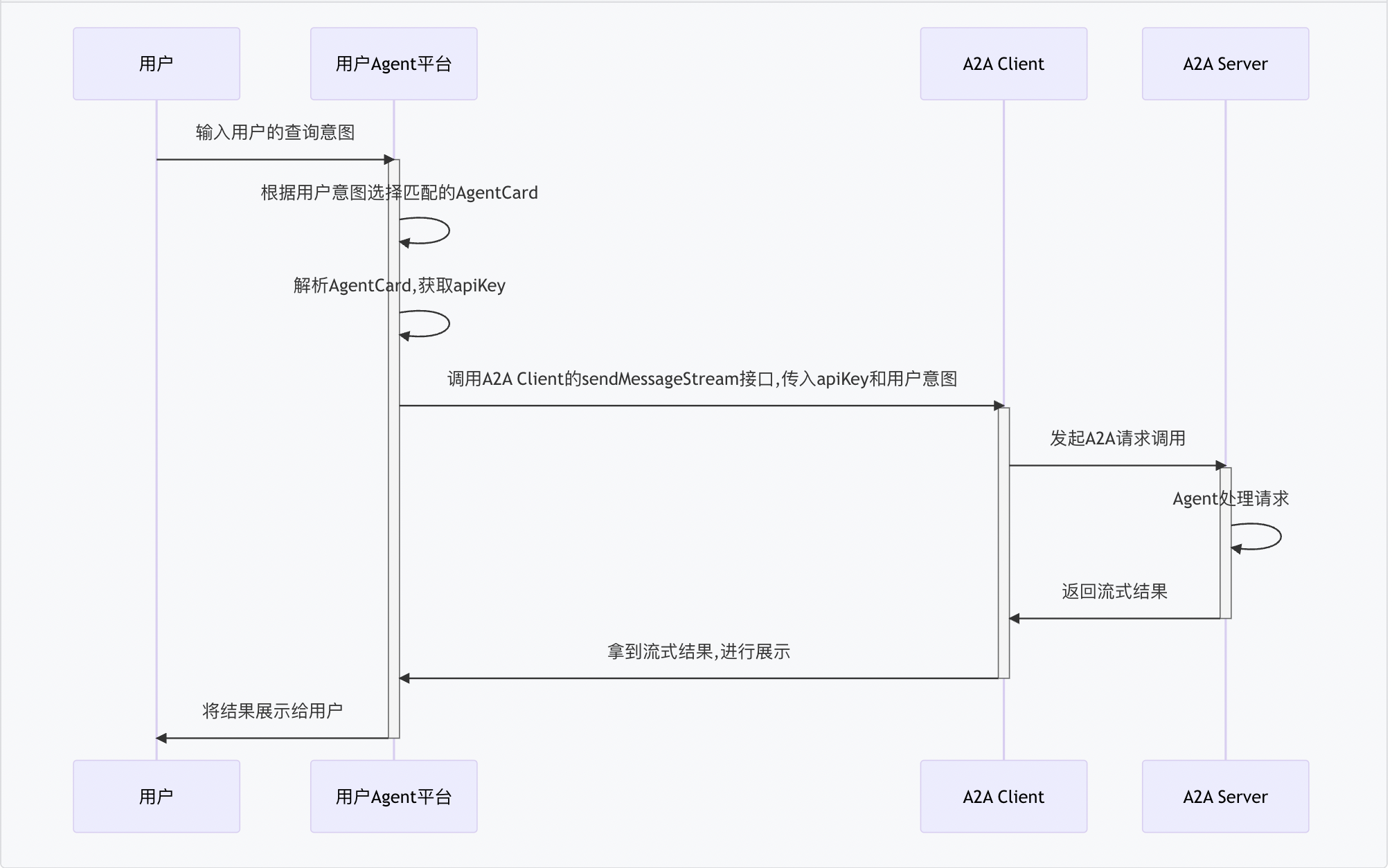

2.3 调用Agent
用户可以使用满足A2A协议的第三方Agent平台对接发布后的A2A应用,亦或是使用A2A Client与A2A Server进行对话。A2A请求调用和返回结构参数及示例参考"3.2 Agent调用"小节。
3 接口说明
3.1 AgentCard
接口定义
Path | /v2/a2a/${appId}/.well-known/agent.json |
---|---|
Method | GET |
Authorization | 请求签名(Bearer <AppBuilder API Key>) |
请求结构
1GET /v2/a2a/${appId}/.well-known/agent.json HTTP/1.1
2HOST: qianfan.baidubce.com
3Authorization: authorization string
请求头域
除公共头域外,无其它特殊头域。
响应参数
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
name | string | 是 | Agent 名称。 |
description | string | 是 | Agent 描述。 |
url | string | 是 | Agent 服务访问地址。 |
version | string | 是 | Agent 版本号。 |
protocolVersion | string | 是 | 支持的 A2A 协议版本。 |
capabilities | AgentCapabilities | 是 | Agent支持的可选功能声明。(例如,流式传输) |
securitySchemes | map<string, SecurityScheme> | 是 | Agent 身份验证要求。 |
security | map<string, list[string]> | 是 | Agent 进行通信的安全要求,标记请求中必须存在的身份验证要求。 |
skills | list[AgentSkill] | 是 | Agent 技能列表。 |
provider | AgentProvider | 是 | Agent 提供商信息。 |
defaultInputModes | list[string] | 是 | Agent 默认支持的输入媒体类型。 |
defaultOutputModes | list[string] | 是 | Agent 默认支持的输出媒体类型。 |
AgentCarpabilities
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
streaming | boolean | 是 | 是否支持 SSE 流式传输。(多智能体协同Agent发布的A2A应用只支持流式传输) |
SecurityScheme
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
type | string | 是 | 安全方案类型,这里固定是"apiKey"。 |
name | string | 是 | 要使用鉴权的参数名称。 |
in | string | 是 | apiKey放置的位置,有效值为"query", "header"或"cookie"。 |
description | string | 是 | 安全方案的描述信息。 |
AgentSkill
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
id | string | 是 | Agent 技能的唯一标识符。 |
name | string | 是 | 技能名称。 |
description | string | 是 | 技能描述。 |
tags | list[string] | 是 | 技能的关键描述标签。 |
examples | list[string] | 否 | 技能使用示例。 |
inputModes | list[string] | 否 | 接收的媒体类型,设置时会覆盖defaultInputModes。 |
outputModes | list[string] | 否 | 输出的媒体类型,设置时会覆盖defaultOutputModes。 |
AgentProvider
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
origanization | string | 是 | Agent 提供商组织。 |
url | string | 是 | Agent 提供商组织链接。 |
请求curl示例
1curl --location 'https://appbuilder.baidu.com/v2/a2a/${appId}/.well-known/agent.json' \
2--header 'X-Appbuilder-Authorization: Bearer <AppBuilder API Key>'
正确响应示例
1{
2 "version": "1.0.0",
3 "description": "1",
4 "skills": [
5 {
6 "name": "网页探索Agent",
7 "description": " 具备问题分析、信息检索、操作浏览器和获取网页内容的能力。可模拟人类自主操作网页,完成自动点击、输入、选择等操作,更好支持内容检索与获取,帮助轻松完成网页浏览、信息查询、内容筛选等任务。",
8 "id": "9f301aed00c1402d8f2cc8faa6a8c91e",
9 "tags": []
10 },
11 {
12 "name": "代码编写Agent",
13 "description": " 具备问题分析、生成和运行代码的能力。支持生成并运行Python代码来解决用户数据处理和分析、数据可视化、数学计算等方面的需求。支持文件格式包含:xlsx、csv、jsonl、json、docx和pdf。",
14 "id": "0e31d072c92347728ae9e2ef204c0ac0",
15 "tags": []
16 },
17 {
18 "name": "报告撰写Agent",
19 "description": " 具备专业化、结构化报告输出能力。可基于用户需求或各类输入信息完成报告的框架搭建、内容组织、逻辑梳理与格式化呈现。支持内容输出为HTML及Markdown的文件格式。",
20 "id": "c46edaee42f44c31afa94c75a56727c1",
21 "tags": []
22 }
23 ],
24 "protocolVersion": "0.2.6",
25 "url": "http://demo.com",
26 "provider": {
27 "organization": "baiduqianfan",
28 "url": "https://console.bce.baidu.com/ai_apaas/appCenter"
29 },
30 "capabilities": {
31 "streaming": true
32 },
33 "securitySchemes": {
34 "apiKeyAuth": {
35 "description": "API Key认证鉴权",
36 "in": "header",
37 "name": "Authorization",
38 "type": "apiKey"
39 }
40 },
41 "security": [
42 {
43 "apiKeyAuth": []
44 }
45 ],
46 "defaultInputModes": [
47 "text/plain"
48 ],
49 "defaultOutputModes": [
50 "text/plain"
51 ],
52 "name": "我的Agent应用"
53}
错误响应示例
1{
2 "code": "NotFoundResource",
3 "message": "A2AServerNotPublishedYet",
4 "request_id": "uuid"
5}
3.2 Agent调用
从AgentCard的url中获取Agent域名,再将AppBuilder API Key放置到AgentCard中定义的SecuritySchema验证要求中请求调用Agent。
接口定义
Path | /v2/${appId} |
---|---|
Method | POST |
Content-Type | application/json |
Authorization | 请求签名(Bearer <AppBuilder API Key>) |
请求结构
1POST /a2a/${appId} HTTP/1.1
2HOST: qianfan.baidubce.com
3Authorization: authorization string
4Content-Type: application/json
5
6{
7 "id": "uuid",
8 "jsonrpc": "2.0",
9 "method": "message/stream",
10 "params": {
11 "message": {
12 "kind": "message",
13 "parts": [
14 {
15 "kind": "text",
16 "text": "今天天气",
17 "metadata": {}
18 }
19 ],
20 "role": "user"
21 }
22 }
23}
请求头域
除公共头域外,无其它特殊头域。
请求参数
参数名 | 类型 | 是否必填 | 说明 |
---|---|---|---|
jsonrpc | string | 是 | 指定JSON-RPC协议版本的字符串,固定为"2.0"。 |
id | string | 是 | 消息id。 |
method | string | 是 | AgentCard支持SSE流式请求,请填写:"mesage/steam"。 |
params | MessageSendParams | 是 | 请求参数。 |
MessageSendParams
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
message | Message | 是 | 发送的消息内容。 |
Message
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
role | string | 是 | 发送消息对象。填写"user"表示当前消息是用户发送的。 |
parts | list[Part] | 是 | 消息内容,每项为TextPart/FilePart/DataPart之一结构。 |
messageId | string | 否 | 消息发送方生成的消息标识。 |
taskId | string | 否 | 指定关联的任务ID,用于继续任务流程执行。 |
contextId | string | 否 | 与消息关联的上下文标识。 |
kind | string | 是 | 结构类型,这里固定为:"message"。 |
metadata | MessageMetadata | 否 | 与消息关联的元数据,用于支持扩展AppBuilder对话API参数。 |
Part
Part包含TextPart、DataPart和FilePart三种接结构,通过kind取值进行区分。
(1) TextPart
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
kind | string | 是 | 标识此内容类型,TextPart固定为"text"。 |
text | string | 是 | 文本消息内容。 |
(2) DataPart
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
kind | string | 是 | 标识此内容类型,DataPart固定为"data"。 |
data | dict | 是 | 结构化数据。 |
(3) FilePart
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
kind | string | 是 | 标识此内容类型,TextPart固定为"text"。 |
file | File | 是 | 文件内容,支持标识为URI或base64编码字节。 |
File
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
name | string | 否 | 文件名称。 |
mime | string | 否 | 文件媒体类型。 |
bytes | string | 否 | 文件base64编码字节,与uri二选一提供。 |
uri | string | 否 | 文件uri,与bytes二选一提供。 |
MessageMetadata
用于支持扩展AppBuilder对话API参数。
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
end_user_id | string | 否 | 终端用户ID,由用户自行定义与维护,限制6 - 64字符。 |
file_ids | list[string] | 否 | 如果在AppBuilder中上传了文件,可以将文件id放入该字段,目前只处理第一个文件。 |
响应头域
除公共头域外,无其它特殊头域。
响应参数
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
jsonrpc | string | 是 | 指定JSON-RPC协议版本的字符串,固定为"2.0"。 |
id | string | 是 | 消息id。 |
result | Task/TaskAritfactUpdateEvent/TaskStatusUpdateEvent | 否 | Agent 返回信息,请求处理成功时返回。 |
error | JSONRPCError | 否 | 请求处理失败时返回。 |
Task
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
id | string | 是 | 指定JSON-RPC协议版本的字符串,固定为"2.0"。 |
contextId | string | 是 | 消息id。 |
status | TaskStatus | 否 | Agent 返回信息,请求处理成功时返回。 |
history | list[Message] | 否 | 历史对话消息。 |
aritfacts | list[Artifact] | 否 | Agent任务生成的输出结构。 |
kind | string | 否 | 结构类型,这里固定为:"task"。 |
TaskStatus
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
state | string | 是 | 任务的当前状态: submitted: 任务已提交。 working: 任务正在处理中。 input-required: 任务需要客户端提供额外输入。 completed: 任务已成功完成。 canceled: 任务已被取消。 failed: 任务执行失败。 rejected:任务因远程代理拒绝而终止。 TaskStatus.message可能包含错误详细信息。 auth-required:Agent需要客户端或用户进行额外身份验证才能继续。 unknown: 任务状态未知。 |
timestamp | string | 否 | 状态的更新时间戳。 |
Artifact
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
artifactId | string | 是 | 指定JSON-RPC协议版本的字符串,固定为"2.0"。 |
name | string | 是 | 输出的当前阶段名称。 |
parts | list[Part] | 是 | 输出的内容结构。 |
metadata | ArtifactMetadata | 是 | 与输出内容关联的元数据,用于支持传输AppBuilder对话API相关的输出信息。 |
ArtifactMetadata
该字段用于支持传输AppBuilder对话API相关的输出信息。
字段 | 类型 | 是否必然存在 | 说明 |
---|---|---|---|
name | string | 否 | 消息名字,用于在同一个组件输出相同type的内容,但是作用不同时,使用该字段进行区分 |
raw_data | object | 否 | 由开发者请求透传,内部系统返回的信息。 |
usage | object | 否 | 大模型的token用量。 |
metrics | object | 否 | 耗时、性能、内存等trace及debug所需信息,服务于下游的Trace及监控需求。 |
type | string | 是 | 消息类型说明,包括text、code、files、urls、oral_text、references、image等。该字段的取值决定了下面的text字段的内容结构。 |
text | object | 是 | 消息具体内容。每种type对应本字段的结构是不同的。 |
visible_scope | string | 否 | 该消息的可见范围,包括user、llm、all,影响消息渲染效果 枚举值: all :全部,包括大模型和用户。 llm:大模型。 user:用户。 默认为all。 |
event | object | 是 | 事件消息 |
更多内部数据接口参考千帆AppBuilder对话接口文档。
TaskArtifactUpdateEvent
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
taskId | string | 是 | 指定JSON-RPC协议版本的字符串,固定为"2.0"。 |
contextId | string | 是 | 消息id。 |
artifact | Artifact | 是 | Agent 返回信息,请求处理成功时返回。 |
append | boolean | 否 | 如果为true标识该部分追加到相同artifactId的已返回的结果中。 |
lastChunk | boolean | 否 | 如果为true表示这条信息是这个artifact的最后更新。 |
kind | string | 是 | 结构类型,这里固定为:"artifact-update"。 |
metadata | ArtifactUpdateMetadata | 是 | 与本次事件关联的元数据,用于支持传输AppBuilder对话API相关的元数据。 |
ArtifactUpdateMetadata
字段 | 类型 | 是否必然存在 | 说明 |
---|---|---|---|
conversation_id | string | 是 | 会话标识ID,用于推送。 |
end_user_id | string | 否 | 终端用户ID。 |
is_completion | boolean | 是 | 流式消息推送回答结果是否完结。 |
message_id | string | 是 | 消息id,即一轮对话的id。一轮对话在流式场景下会多次消息推送的message_id将保持一致。 |
role | string | 是 | 输出该消息的角色,包括tool、assisatnt、user。 |
status | string | 是 | 当前对话状态。 running done error interrupt |
trace_id | string | 是 | 调用标识ID,便于追踪。 |
user_id | object | 是 | 开发者id。 |
TaskStatusUpdateEvent
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
taskId | string | 是 | 正在更新状态的任务ID。 |
contextId | string | 是 | 关联任务的上下文ID。 |
status | TaskStatus | 是 | 新的任务状态。 |
final | boolean | 否 | 如果为true,表示是本次流更新的最终事件。服务器通常在这之后关闭SSE连接。 |
kind | string | 是 | 结构类型,这里固定为:"status-update"。 |
JSONRPCError
字段 | 类型 | 必然存在 | 说明 |
---|---|---|---|
code | int | 是 | 错误代码。 |
message | string | 是 | 错误描述信息。 |
请求 curl 示例
1curl --location 'http://appbuilder.baidu.com/a2a/${appId}' \
2--header 'Authorization: Bearer <AppBuilder API Key>' \
3--header 'Content-Type: application/json' \
4--data '{
5 "id": "uuid",
6 "jsonrpc": "2.0",
7 "method": "message/stream",
8 "params": {
9 "message": {
10 "kind": "message",
11 "parts": [
12 {
13 "kind": "text",
14 "text": "今天天气"
15 }
16 ],
17 "role": "user"
18 }
19 }
20}'
正确响应示例
1data: {
2 "jsonrpc": "2.0",
3 "result": {
4 "taskId": "taskid-1",
5 "contextId": "contextid-1",
6 "kind": "artifact-update",
7 "artifact": {
8 "artifactId": "artifactid-1",
9 "name": "/thought/plan",
10 "parts": [],
11 "metadata": {
12 "event": {
13 "create": "",
14 "id": "eventid-1",
15 "name": "/thought/plan",
16 "status": "preparing"
17 },
18 "is_end": false,
19 "is_event_done": false,
20 "metrics": {
21 "begin_time_stamp": null,
22 "current_time_stamp": null
23 },
24 "name": "",
25 "render": {
26 "component_detail": {
27 "is_workflow": false,
28 "name": "",
29 "thought": ""
30 }
31 },
32 "text_raw": {
33 "info": ""
34 },
35 "type": "text",
36 "visible_scope": "all"
37 }
38 },
39 "append": true,
40 "lastChunk": false,
41 "metadata": {
42 "conversation_id": "conversationid-1",
43 "end_user_id": "",
44 "is_completion": false,
45 "message_id": "msgid-1",
46 "role": "tool",
47 "status": "preparing",
48 "trace_id": "traceid-1",
49 "user_id": "userid-1"
50 }
51 },
52 "id": "id-1"
53}
54
55data: {
56 "jsonrpc": "2.0",
57 "result": {
58 "taskId": "taskid-1",
59 "contextId": "contextid-1",
60 "kind": "artifact-update",
61 "artifact": {
62 "artifactId": "artifactid-1",
63 "name": "/thought/plan",
64 "parts": [
65 {
66 "kind": "text",
67 "text": "已经完成任务"
68 }
69 ],
70 "metadata": {
71 "event": {
72 "create": "",
73 "id": "eventid-1",
74 "name": "/thought/plan",
75 "status": "running"
76 },
77 "is_end": false,
78 "is_event_done": false,
79 "metrics": {
80 "begin_time_stamp": null,
81 "current_time_stamp": null
82 },
83 "name": "",
84 "render": {
85 "component_detail": {
86 "is_workflow": false,
87 "name": "",
88 "thought": ""
89 }
90 },
91 "type": "text",
92 "visible_scope": "all"
93 }
94 },
95 "append": true,
96 "lastChunk": false,
97 "metadata": {
98 "conversation_id": "conversationid-1",
99 "end_user_id": "",
100 "is_completion": false,
101 "message_id": "msgid-1",
102 "role": "tool",
103 "status": "running",
104 "trace_id": "traceid-1",
105 "user_id": "userid-1"
106 }
107 },
108 "id": "id-2"
109}
110
111data: {
112 "jsonrpc": "2.0",
113 "result": {
114 "taskId": "taskid-1",
115 "contextId": "contextid-1",
116 "kind": "status-update",
117 "status": {
118 "state": "completed",
119 "timestamp": "2025-08-27T08:20:43.604369041+08:00"
120 },
121 "final": true
122 },
123 "id": "id-3"
124}
错误响应示例
1{
2 "jsonrpc": "2.0",
3 "error": {
4 "code": -32700,
5 "message": "Server received JSON that was not well-formed."
6 }
7 "id": "id-4"
8}
